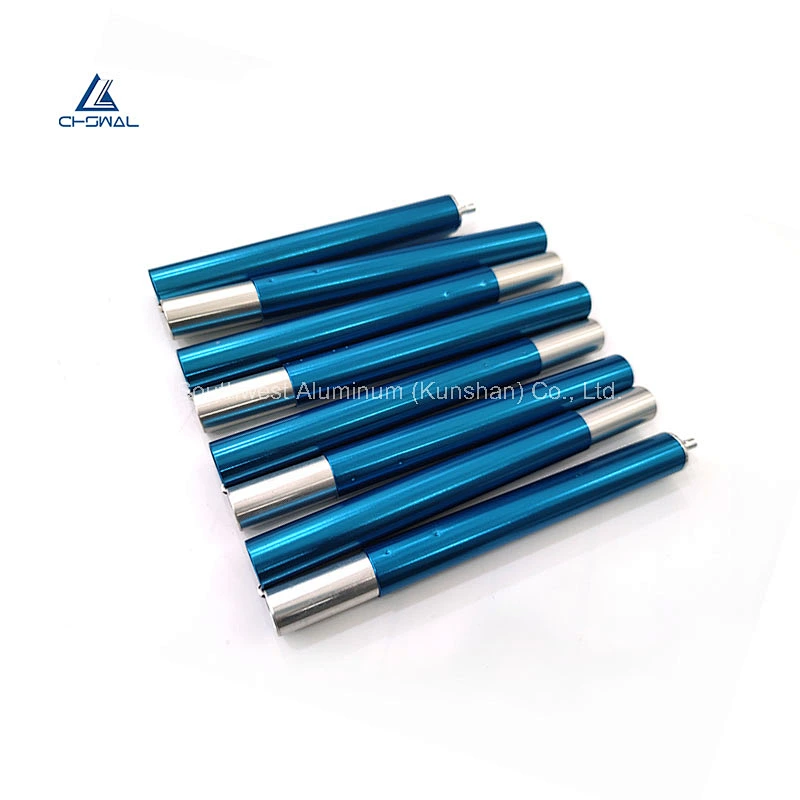

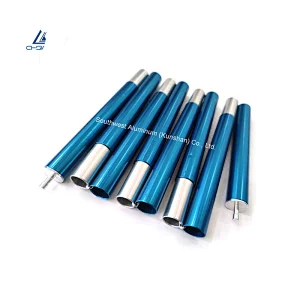

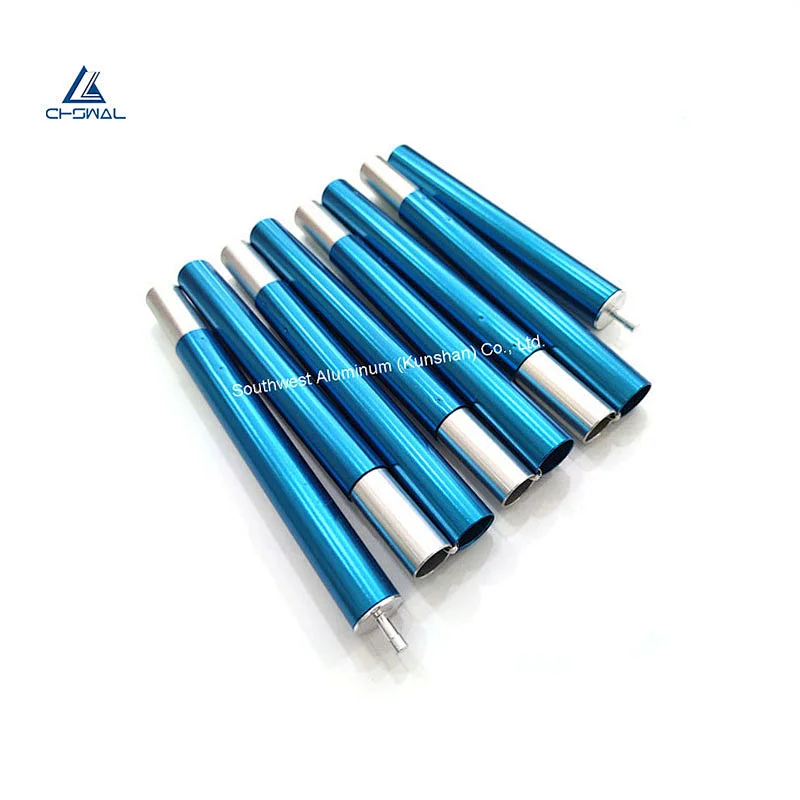

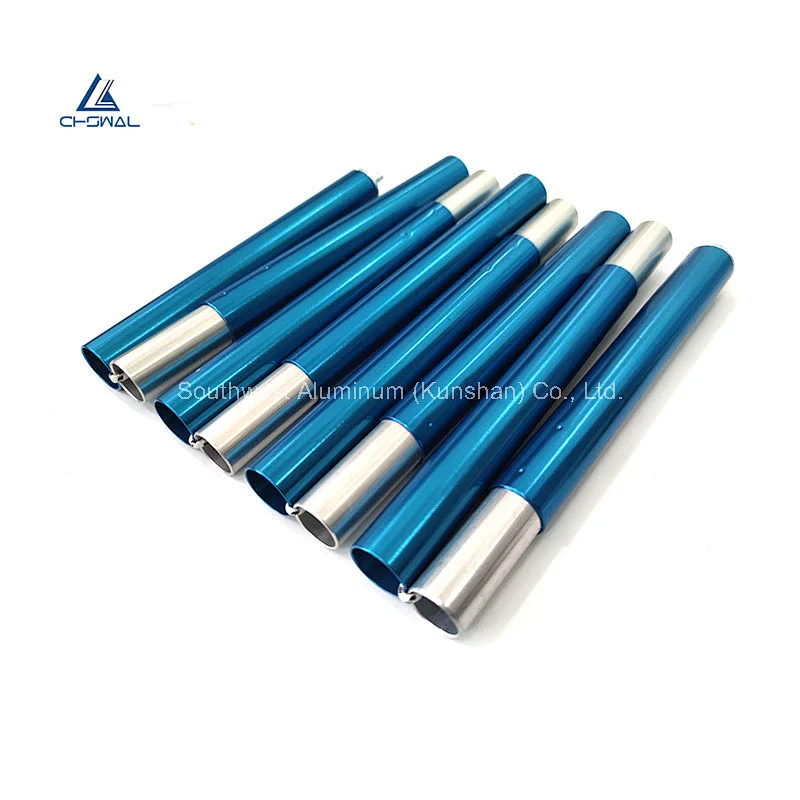

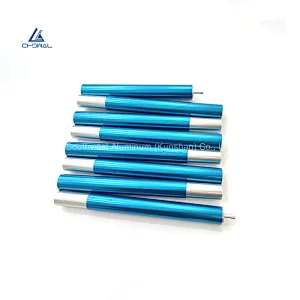

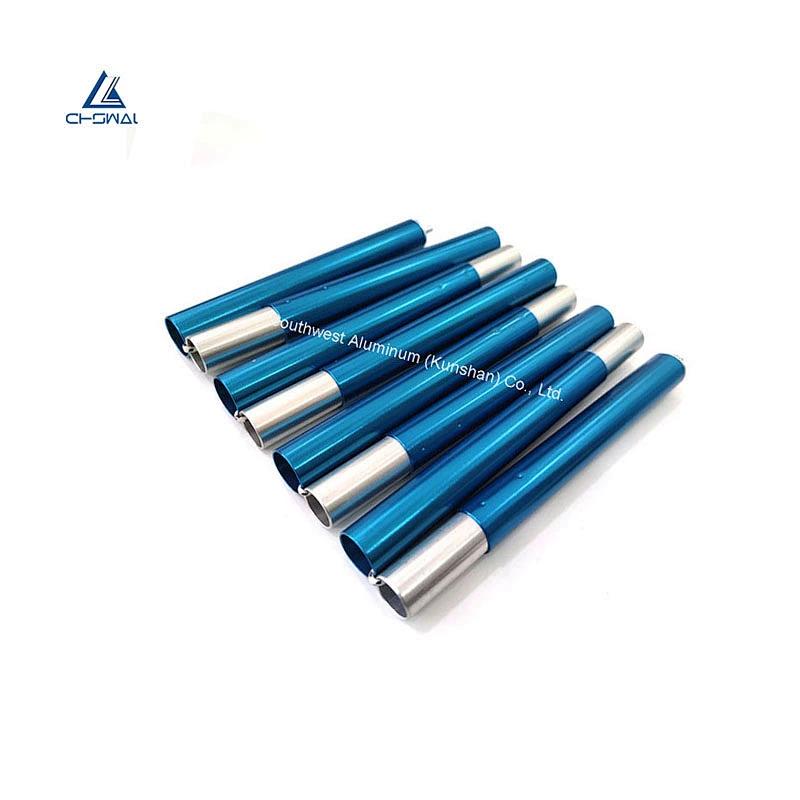

Large Diameter Aluminum Tent Poles for Rescue Tent

Large Diameter Aluminum Tent Poles for Rescue Tent

Model NO.: 7001
Price:: USD 3.84-4.26 / piece
Delivery:: FOB
Minimum order quantity:: 1 piece
Supply Ability:: 100000.0 piece / Month
Country of Origin:: Shanghai

Quantity:

Product Description

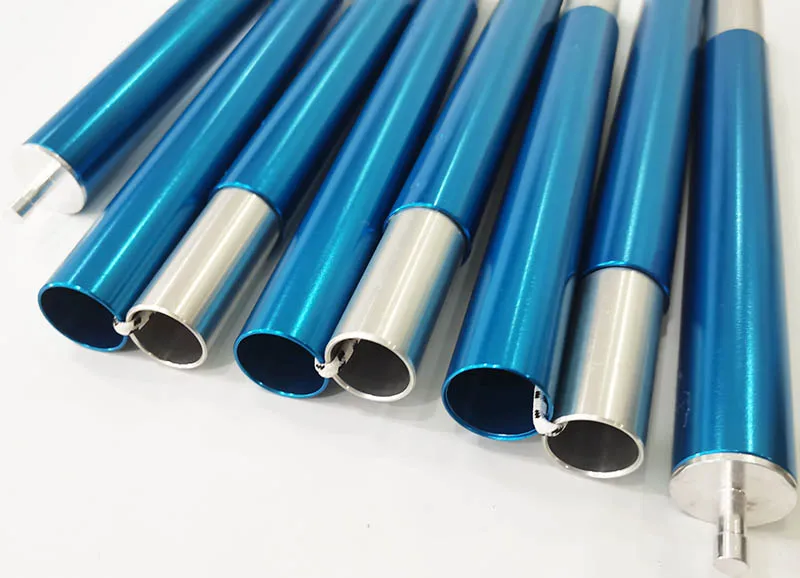

Item name:Large Diameter Aluminum Tent Poles for Rescue Tent
Material:Aluminum Alloy
Color:Silver or as required
Certificate:ISO
Surface:Anodized
Feature:High Strength, Heat resistent, Durable Aluminum pole
Application:Outdoor sporting; Campsite;Auto-industry,etc
Grade:7000 Series
Shape:Round
Surface Treatment:Anodized
Alloy Or Not:Is Alloy
Temper:O - H112
Tolerance:±1%
Place of Origin:CN;JIA
Length:Customers Requested
Usage:Outdoor sporting
Hardness:90-110
Al (Min):99.7%
Wall Thickness:0.7MM----1.5MM
Model Number:7001
Brand Name:--

Product Description

Item	Large Diameter Aluminum Tent Poles for Rescue Tent
Material	7000 series, such as AL7001
Surface treatment	Mill finish, anodized, electrophoresis, powder coating, PVDF coating, wood grained etc.
Maximum Size	OD: 7mm-35mm, Length: custom made
Temper	T3-T8
Supply Ability	800 Ton / Month
Port	SHANGHAI
Good Package	Inner brown craft paper/outside carton/wooden pallets
Shipment Time	1-3weeks
After Sales Service	Available by our staff with more than 10 years of working experience in Tent Pole Field

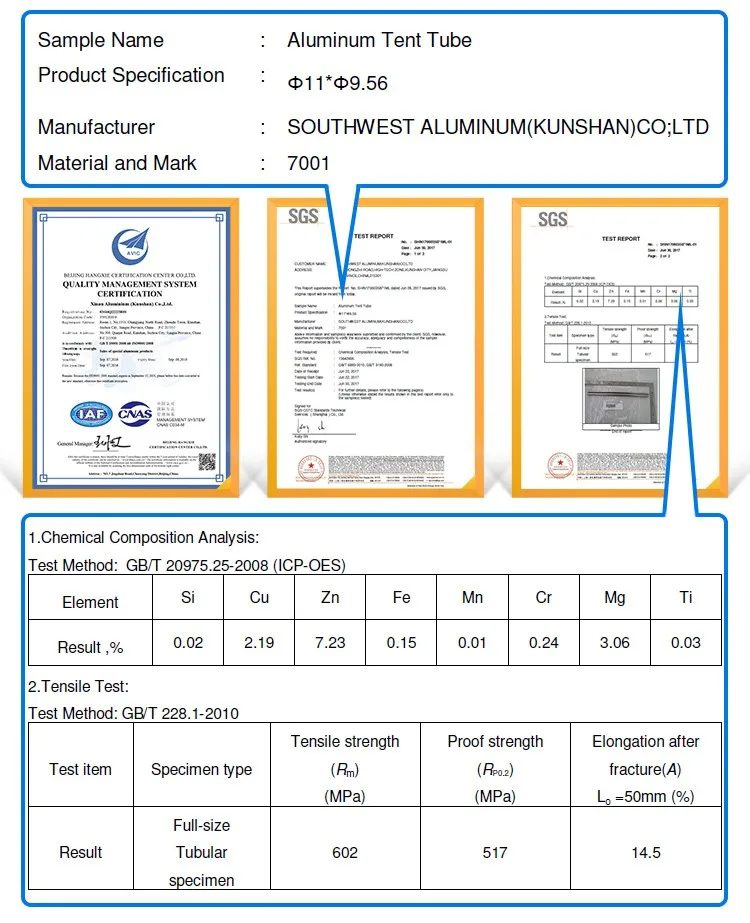

Chemical Composition
Grade	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
7001	0.02	0.15	2.19	0.01	3.06	0.24	7.23	0.03	Balance

Mechanical Properties
Grade	Temper	Wall Thickness(mm)	Tensile Strength(Mpa)	Yield strength(Mpa)	Elongation(%)
7001	T6	≤6.3	602	517	14.5

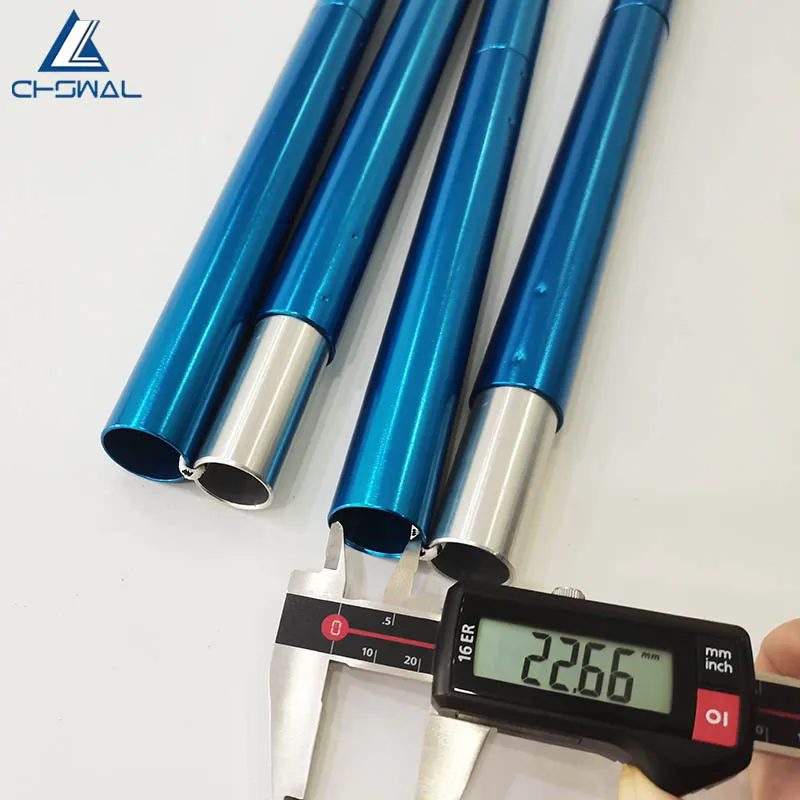

DIMENSION(mm)
Item#	*ODthickness**	Item#	*ODthickness**
1	Φ7*0.72	14	Φ19*1.2
2	Φ7.9*0.72	15	Φ22*1.0
3	Φ8.5*0.72	16	Φ22*1.2
4	Φ9*0.72	17	Φ25*1.0
5	Φ9.5*0.72	18	Φ25*1.2
6	Φ11*0.72	19	Φ28*1.0
7	Φ12*0.72	20	Φ28*1.2
8	Φ13*0.8	21	Φ30*1.0
9	Φ13*1.0	22	Φ30*1.2
10	Φ14*0.8	23	Φ30*1.5
11	Φ16*1.0	24	Φ35*1.0
12	Φ16*1.2	25	Φ35*1.2
13	Φ19*1.0	26	Φ35*1.5

Product Application

Production Process

Our Company

Southwest Aluminium (kunshan) Co., LTD.is located in Kunshan city,Jiangsu,China.Just less than 19 minutes of journey from Shanghai. We specialize in high quality aluminum products,,including aluminum pipe,bar,plate/sheet, handlebar,and spare parts. ISO9001 and TS16949 quality system certification. Strict regulation process, improve training system and quality assurance system to guarantee process execution.
