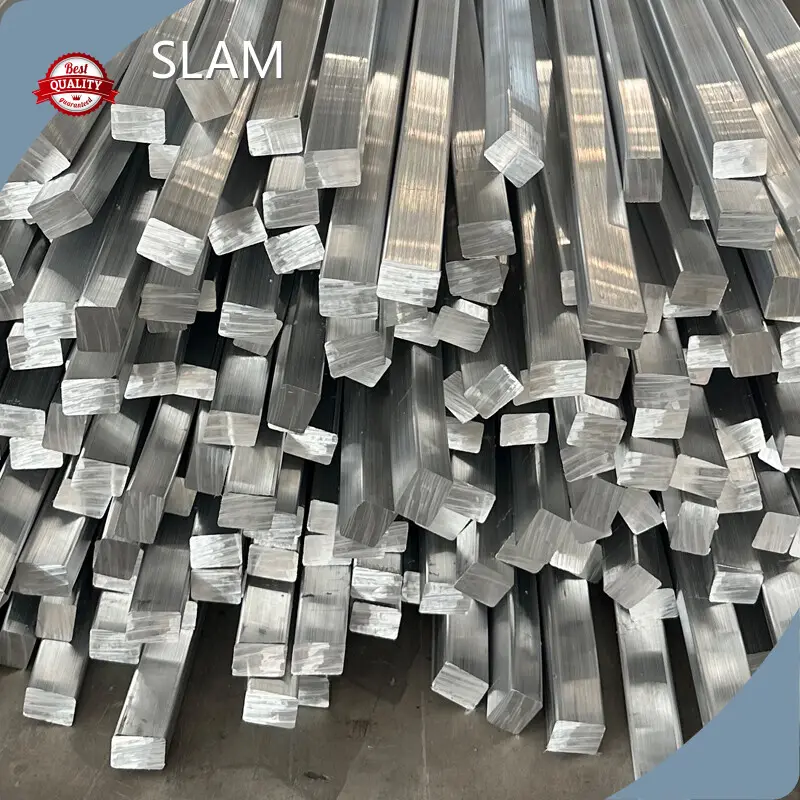

Aluminum Extruded Bar SLAM
Product details of the aluminum extruded bar
Product Overview
SLAM aluminum extruded bar is made in a sophisticated production unit and is impeccable in terms of craftsmanship. This product must go through our quality inspector's internal quality assurance procedure to ensure non-defective quality. Meticulous package make sure the aluminum extruded bar in good condition after delivery.
Product Introduction
Compared with similar products, the aluminum extruded bar produced by SLAM has the following advantages.
Applications
2024 aluminum square bar has numerous features that make it an ideal choice for various industries.
Some of the most notable features of 2024 aluminum square bar include:
1. High strength-to-weight ratio
2. Excellent fatigue resistance
3. Corrosion resistance
4. Good machinability
5. Weldability
6. Anodizing and plating capabilities
Chemical Composition
The chemical composition of 2024 aluminum square bar is as follows:
Copper (Cu): 3.8% - 4.9%
Magnesium (Mg): 1.2% - 1.8%
Manganese (Mn): 0.3% - 0.9%
Iron (Fe): 0.5% maximum
Silicon (Si): 0.5% maximum
Zinc (Zn): 0.25% maximum
Titanium (Ti): 0.15% maximum
Chromium (Cr): 0.1% maximum
Other elements: 0.05% maximum each, 0.15% total maximum
Mechanical Properties
Compared to other aluminum alloys, 2024 aluminum square bar has excellent mechanical properties, making it an ideal choice for applications that require high strength-to-weight ratios. The following are the typical mechanical properties of 2024 aluminum square bar:
Tensile strength: 68,000 - 78,000 psi
Yield strength: 47,000 - 57,000 psi
Elongation: 12% - 20%
Brinell hardness: 120 - 145
Fatigue strength: 41,000 - 47,000 psi
Applications
2024 aluminum square bar is used in a range of industries due to its excellent properties. Some of the most common applications include:
1. Aerospace industry: aircraft structures, engine components, landing gears
2. Automotive industry: frames, wheels, transmissions
3. Marine industry: boat hulls, masts, deck components
4. Sports equipment: bike frames, tennis rackets, golf clubs
5. Packaging industry: cans, bottle caps
6 Electrical industry: wires, conductors, electrical fittings
Conclusion
2024 aluminum square bar is a versatile and high-strength alloy that offers excellent mechanical properties, corrosion resistance, and workability. Its wide range of applications makes it an indispensable material for many industries. With its unique properties, 2024 aluminum square bar is sure to remain popular for years to come.
